R1200GS & GSA Luggage Rack/Tank System
We've just added a BMW Luggage Rack/Tank System (LRT) for the new 2014 BMW R1200 GS Adventure. As with our other BMW tank systems this is a modular design that allows you to mix and match to build the exact system you want.
The core of the design is the universal mounting plate. It is mounted to existing holes and requires no modification to the motorcycle.The GSW LRT was designed using a 2013 R1200GS water cooled so it may fit other models. You can check with us to verify your mounting pattern.

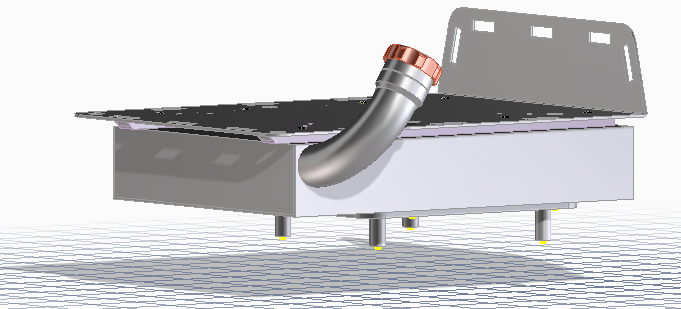

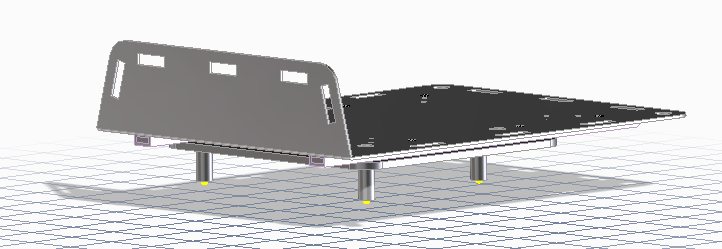

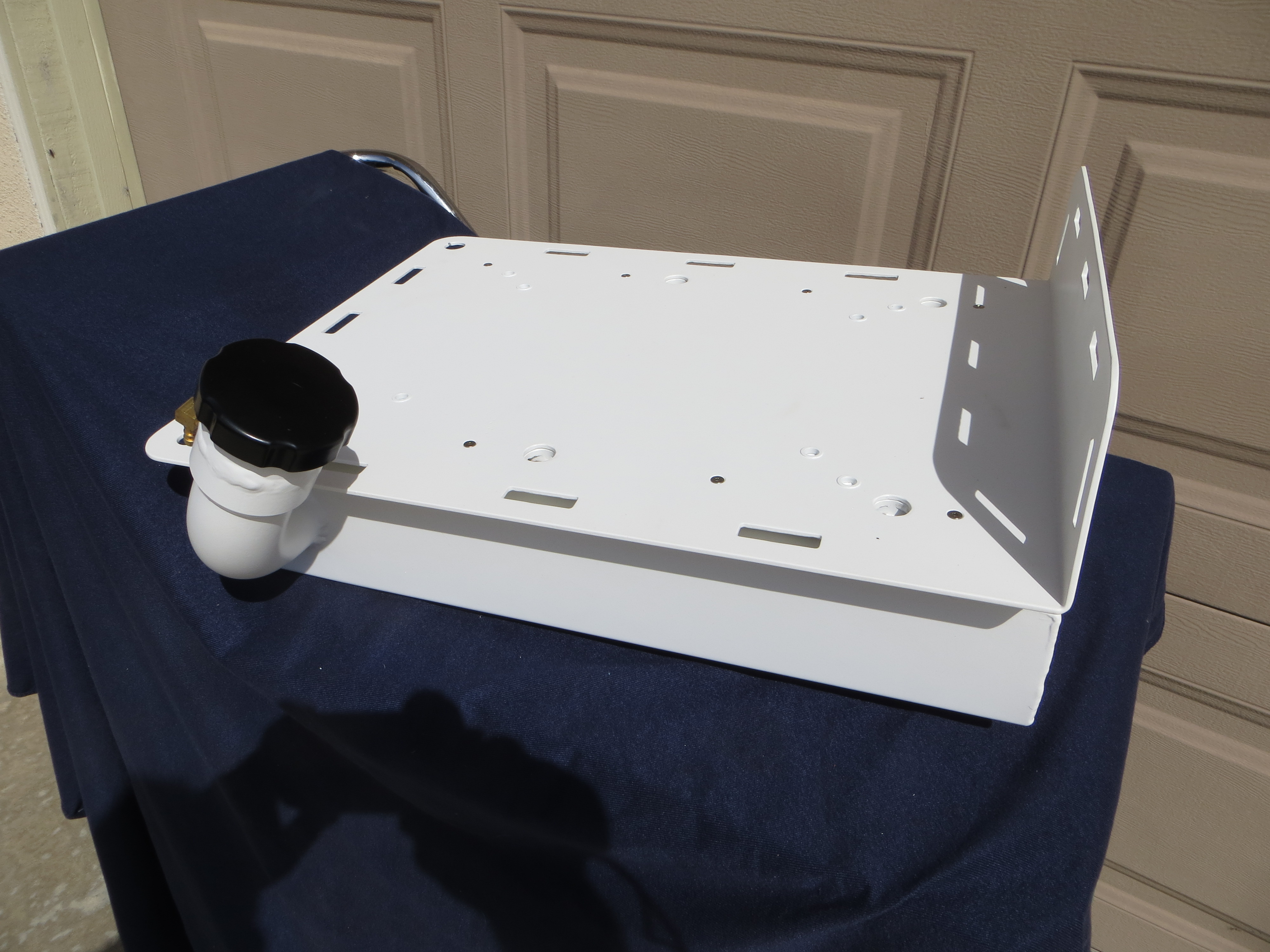

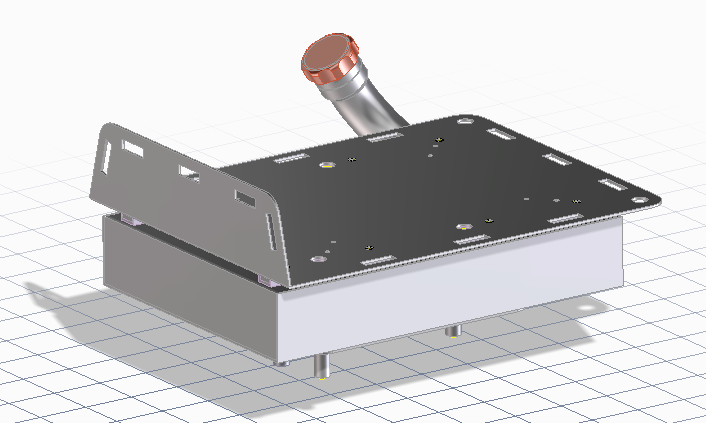

Using this mounting plate as a basis, you can opt for just the luggage deck or, as is shown here an auxiliary fuel tank and the luggage deck.
The tank capacity can be customized to your specifications.
NOTE: Auxiliary tank capacities are nominal. We assure they are plus 0.0 (zero) gallons from the specification but may vary minus by 0.2 gallon.
- System
- Powder coated to prevent scratching and marring
- All components shock mounted

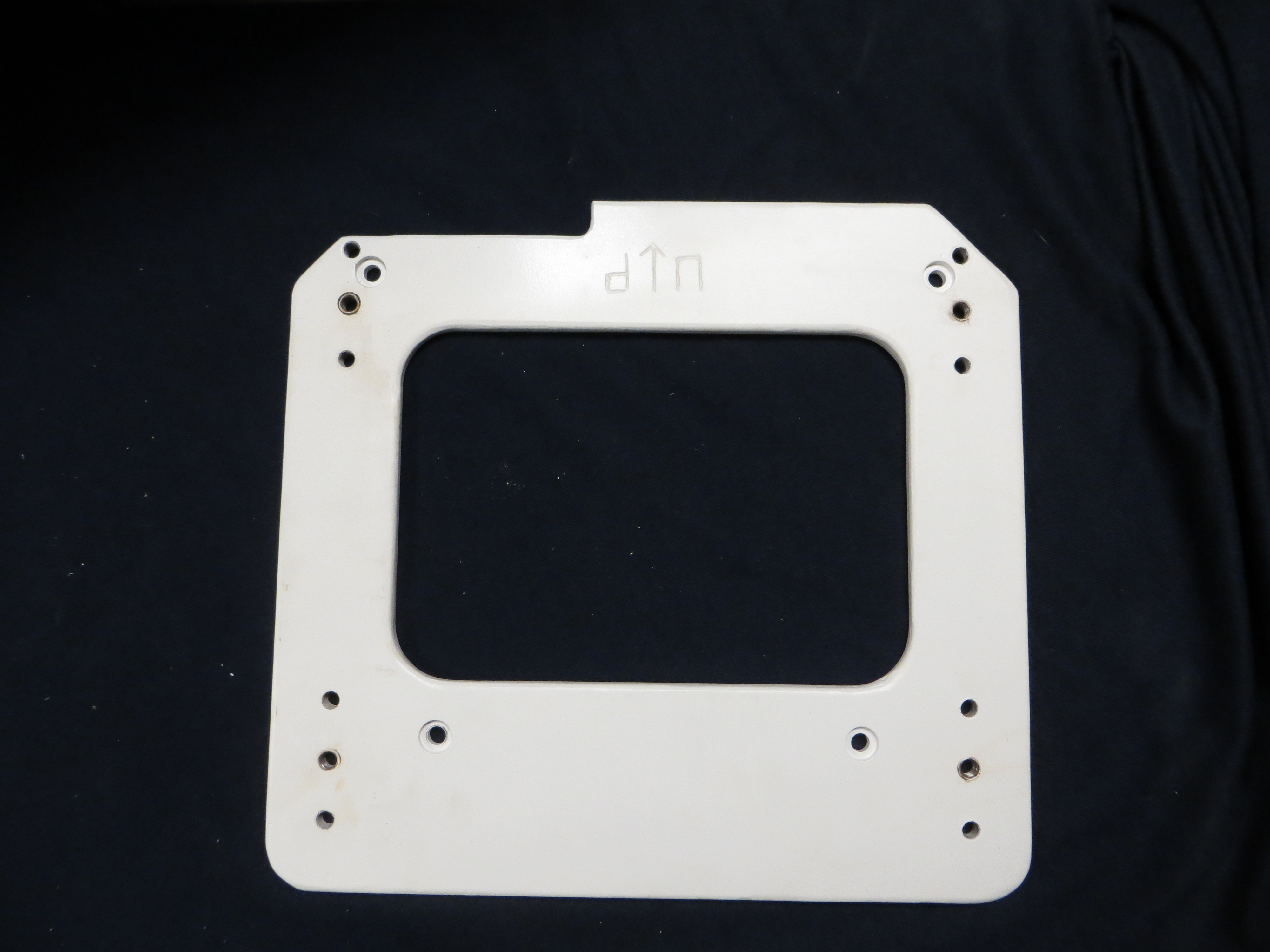

- Mounting Plate
- Fabricated from solid aluminum plate
- Uses stainless steel hardware
- Multiple mounting holes to adjust for rider preferences.

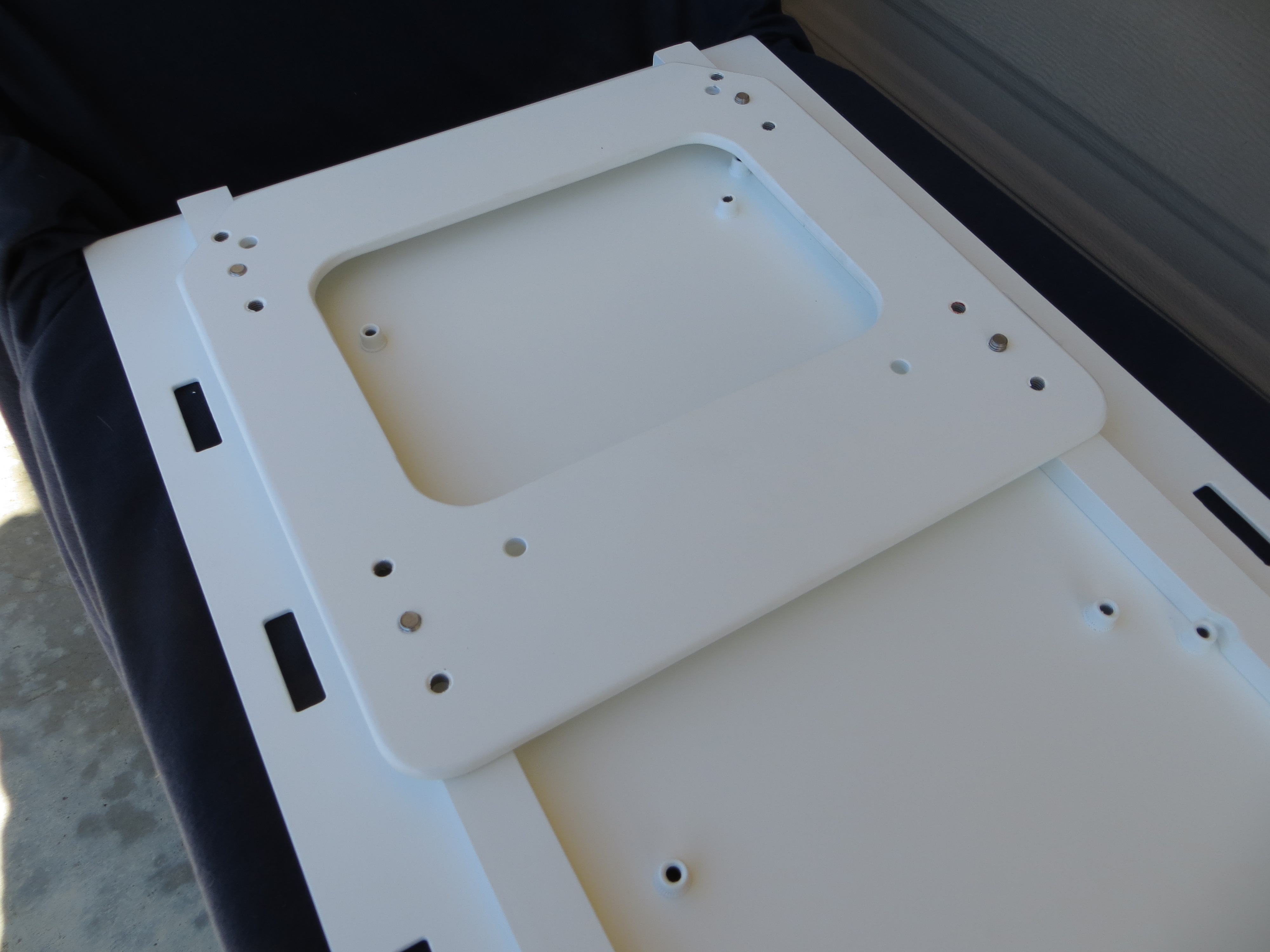

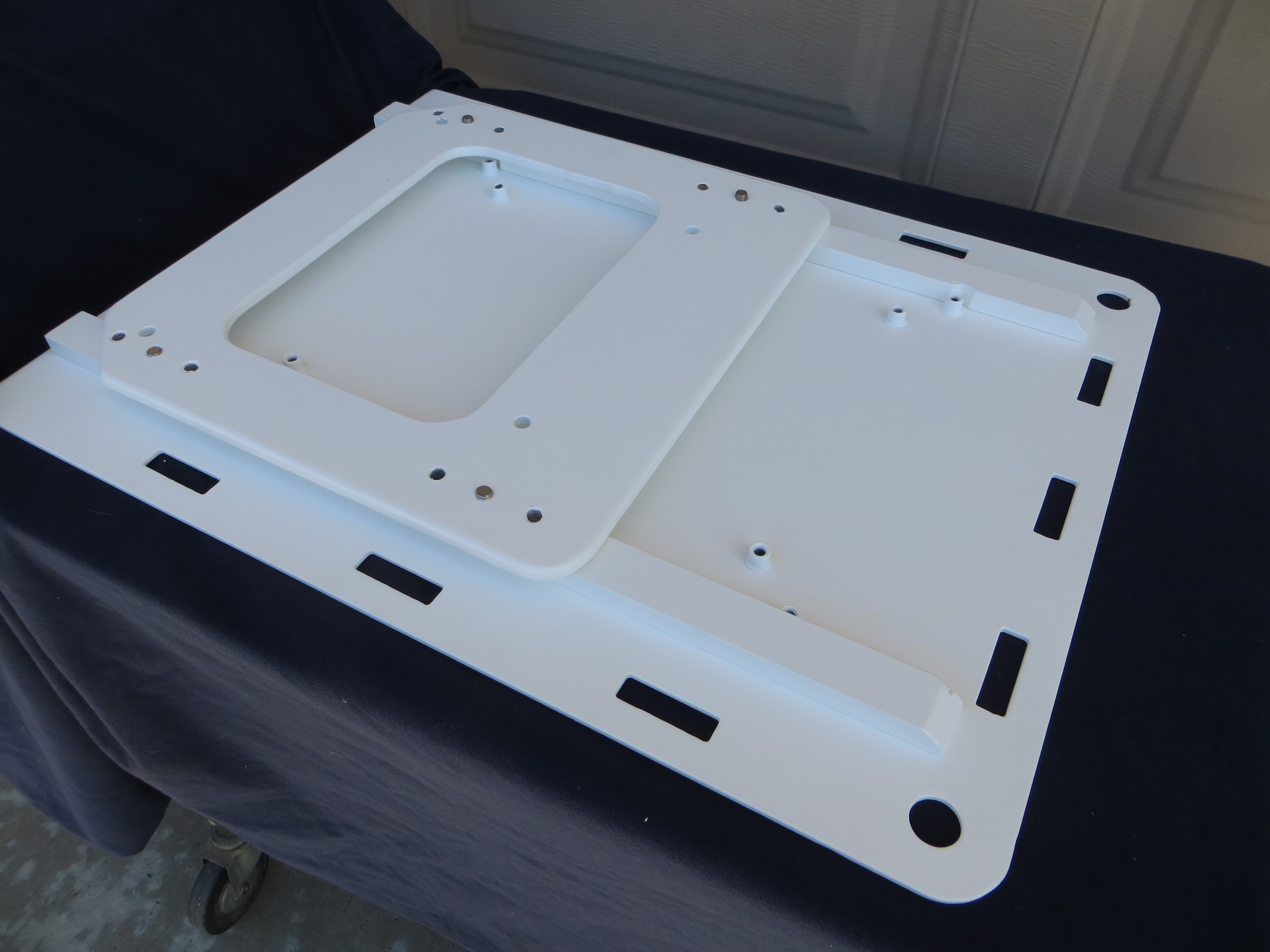

- The tank/deck has 4 mounting holes to affix it to the mounting plate.

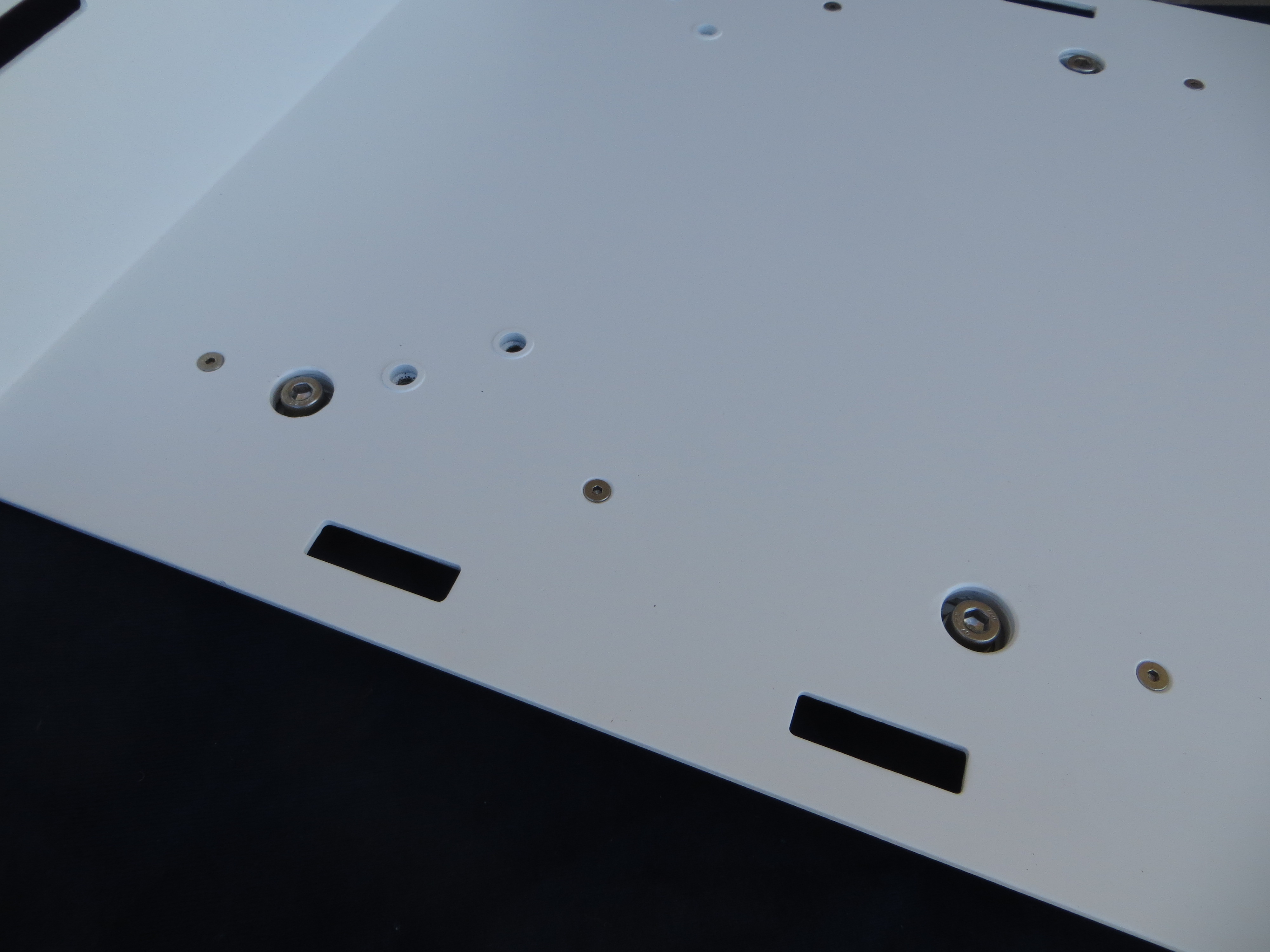

The mounting plate has holes drilled and tapped to receive the mounting bolts from the tank/deck.

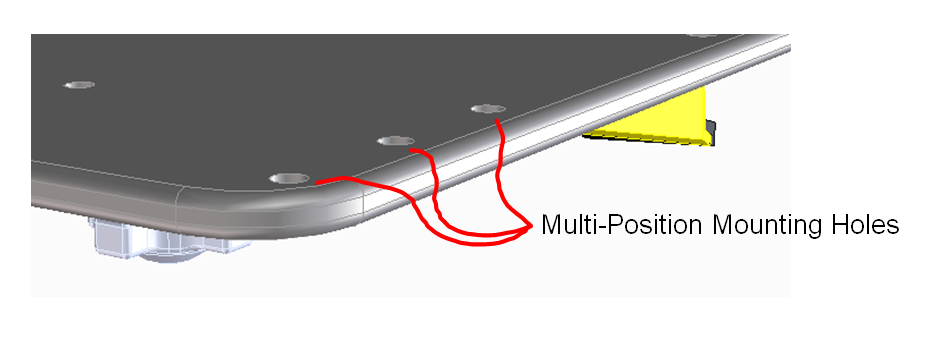

There are a total of 12 holes in the mounting plate to allow for adjustments of the tank/deck position forward or rearward as shown in the following figure.
- The tank/deck has 4 mounting holes to affix it to the mounting plate.

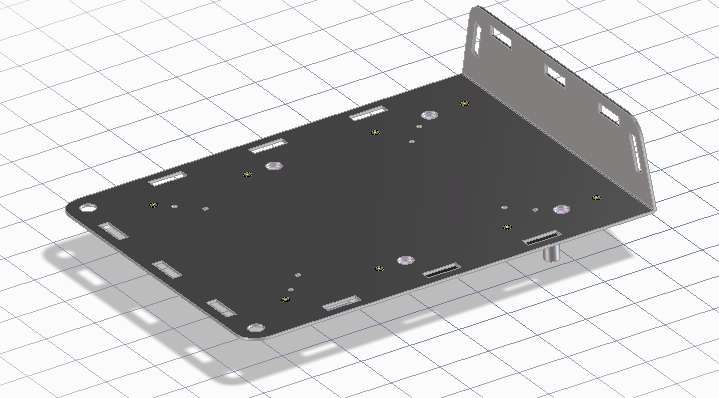

- Luggage Deck
- Fabricated from 1/8" aluminum sheet
- 1/2" antenna mounting holes in rear corners
- Rectangular tie down slots around the perimeter
- Upturn at front to prevent forward movement of luggage

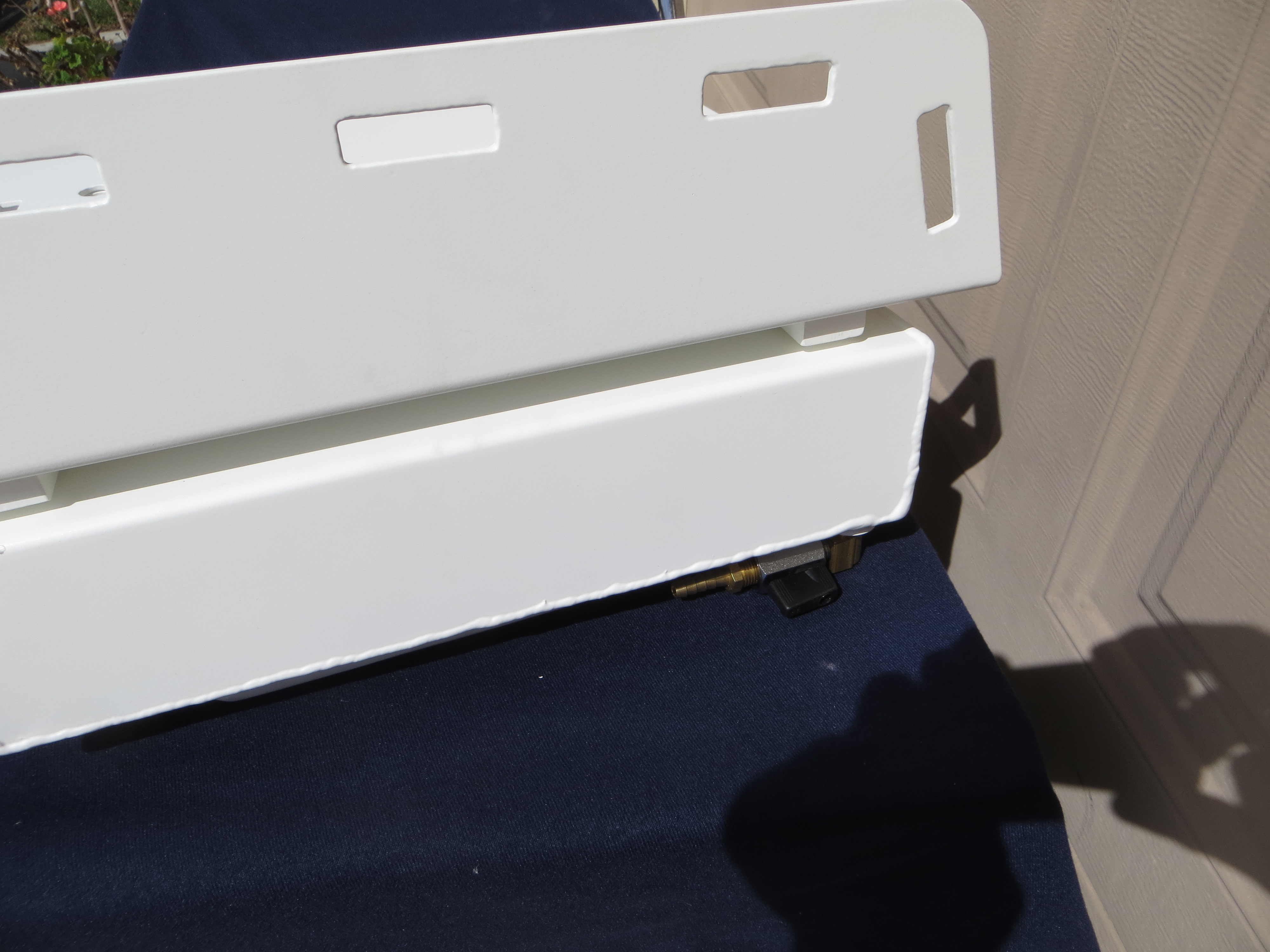

- Tank
- Fabricated from marine grade aluminum alloy for long life
- TIG welded joints
- Integral baffling
- Side mounted filler neck to prevent spillage on luggage.
- Non-vented cap affixed to the tank with a brass lanyard
- Integral grounding point

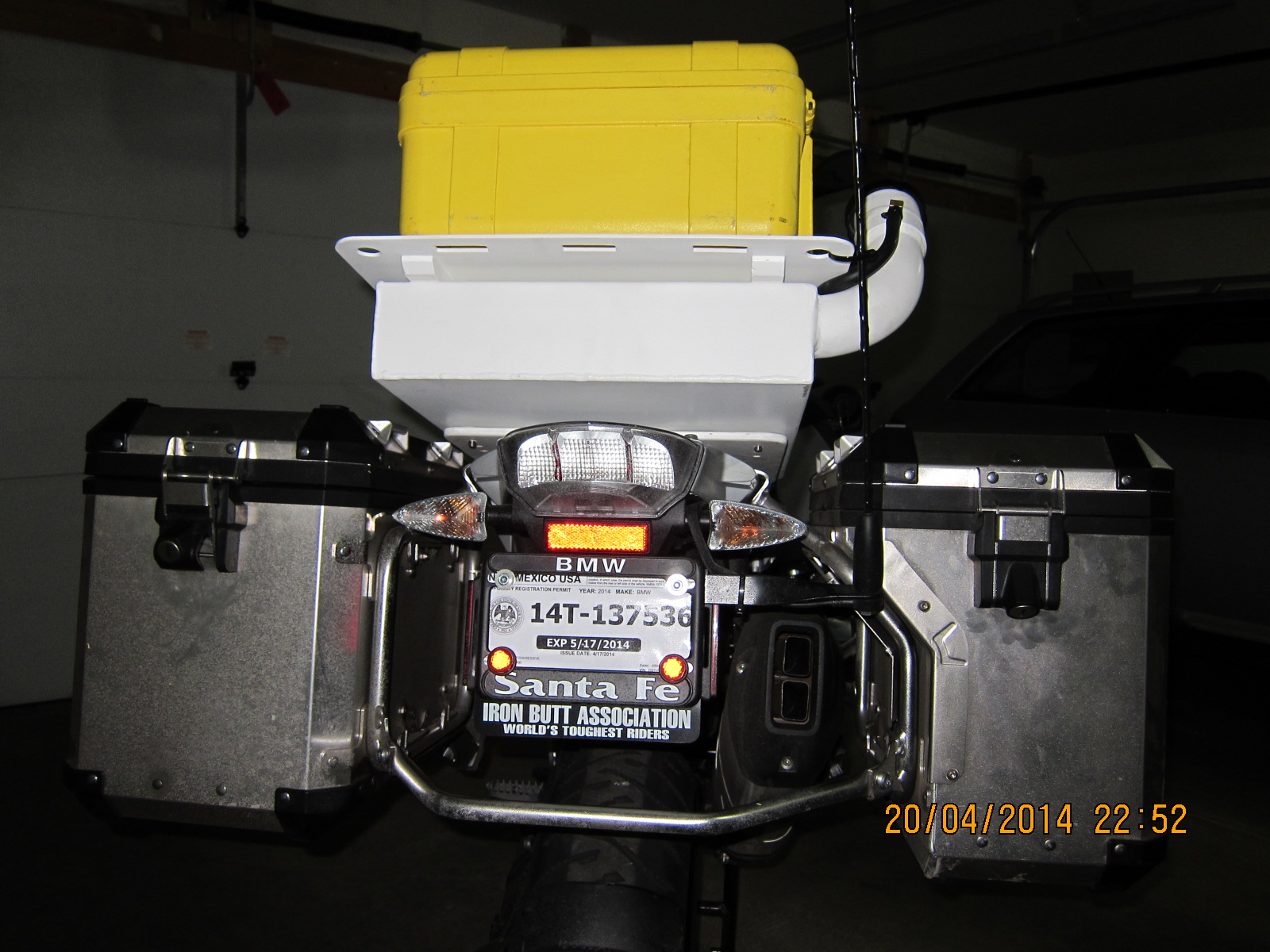

- Quick Connect Luggage System (optional)
- Pelican/Storm iM2500 wheeled case (airline carry-on qualified)
- Quick release mechanism for secure attachment to luggage deck
- Rugged padlockable latching mechanism
- GSW Mounting Plate
- 5000 series aluminum alloy
- M8 mounting holes
- GSW Luggage Deck
- 1/8" 5052 aluminum alloy
- 24" x 16" with 4" upturn at the front
- 1/2" x 1" x 22" extruded 6061 aluminum tube mounting rails with end caps
- stainless steel flat socket head mounting screws
- GSW Tank
- .100" thick 5052 aluminum alloy
- 1/4" FNPT drain bung to accept readily available fittings
- 1/8" FNPT bung for vent line in filler neck
- Pressure tested at 4psi for a minumum of 12 hours
- Capacity is to your specification with a tolerance of minus .2 gallons, plus 0 gallons
- Double X pattern longitudinal baffles
- Quick Connect Luggage System (optional)
- Pelican/Storm iM2500 wheeled case (airline carry-on qualified)
- Quick release mechanism for secure attachment to luggage deck
- Rugged padlockable latching mechanism
Systems are priced according to what is actually used.
When you compare our pillion mounted luggage rack system to others on the market (AltRider or Touratech) you will find that our pricing and features are extremely competitive.
We offer ride-in installation or FedEx shipping.
To request a build schedule please send us an email.
