Optional L-Track Tie Down Points

Several clients have asked about tie down points. With a bit of homework we think we've come up with an optimal solution, the L-Track system. These components are readily available and reasonably priced.

Sunday, 02 March 2014
Optional L-Track Tie Down Points - Side Rails using L-Track

Side Rails using L-Track

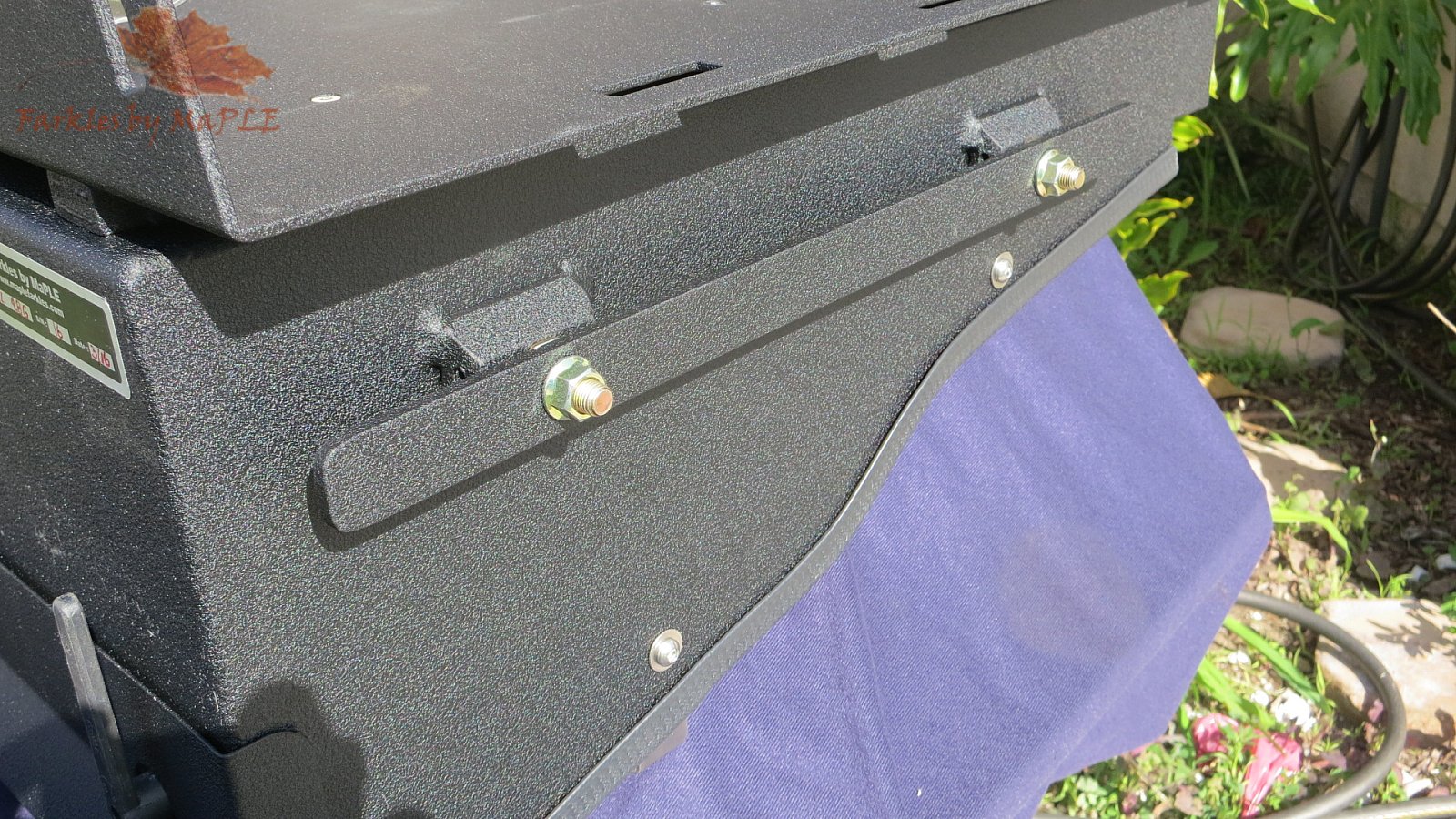

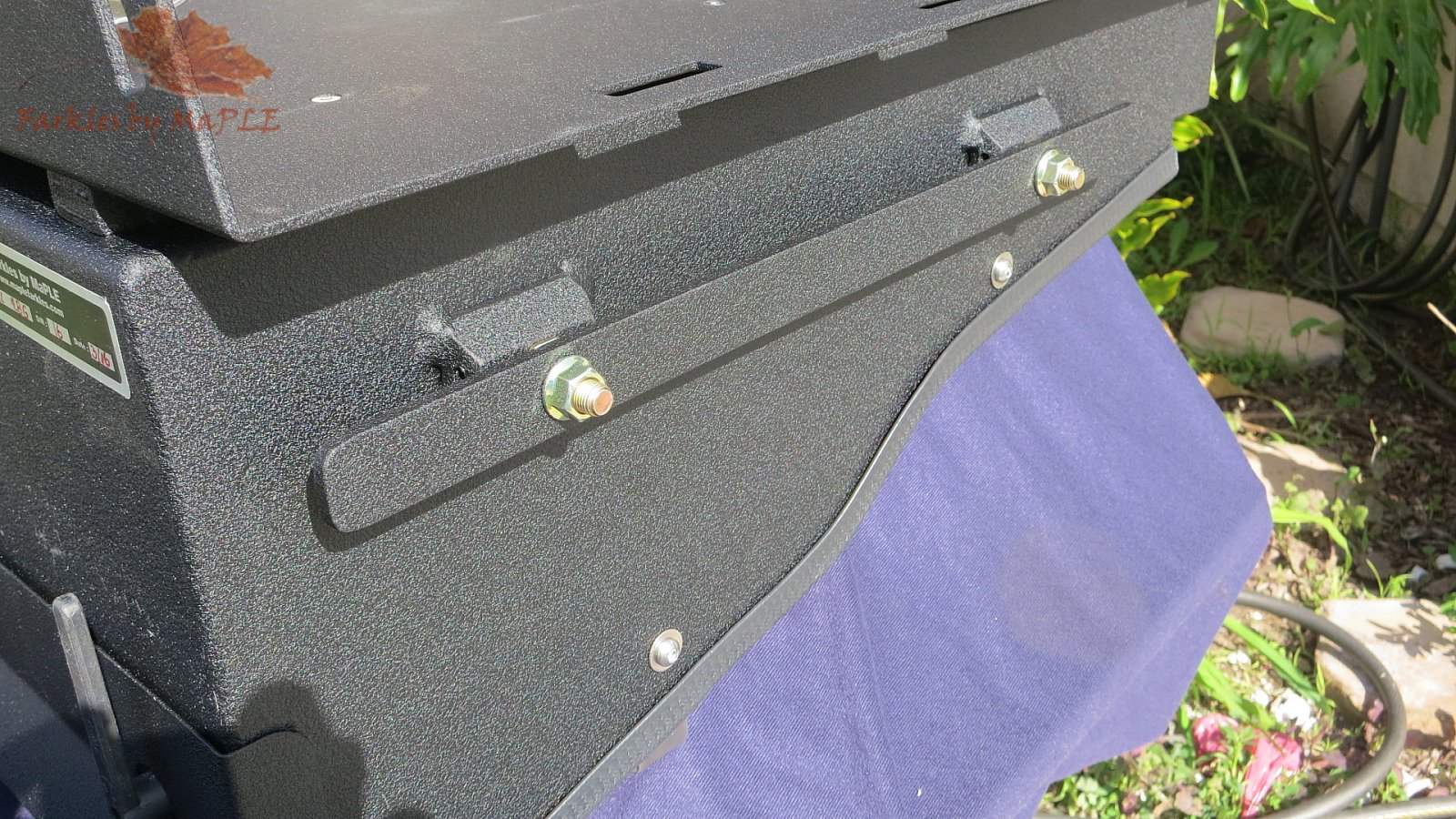

Here is a close shot of side rails on an FJR tank. Great for attaching whatever you need. Easily removable.
Optional L-Track Tie Down Points - LRM L-Track Option

LRM L-Track Option

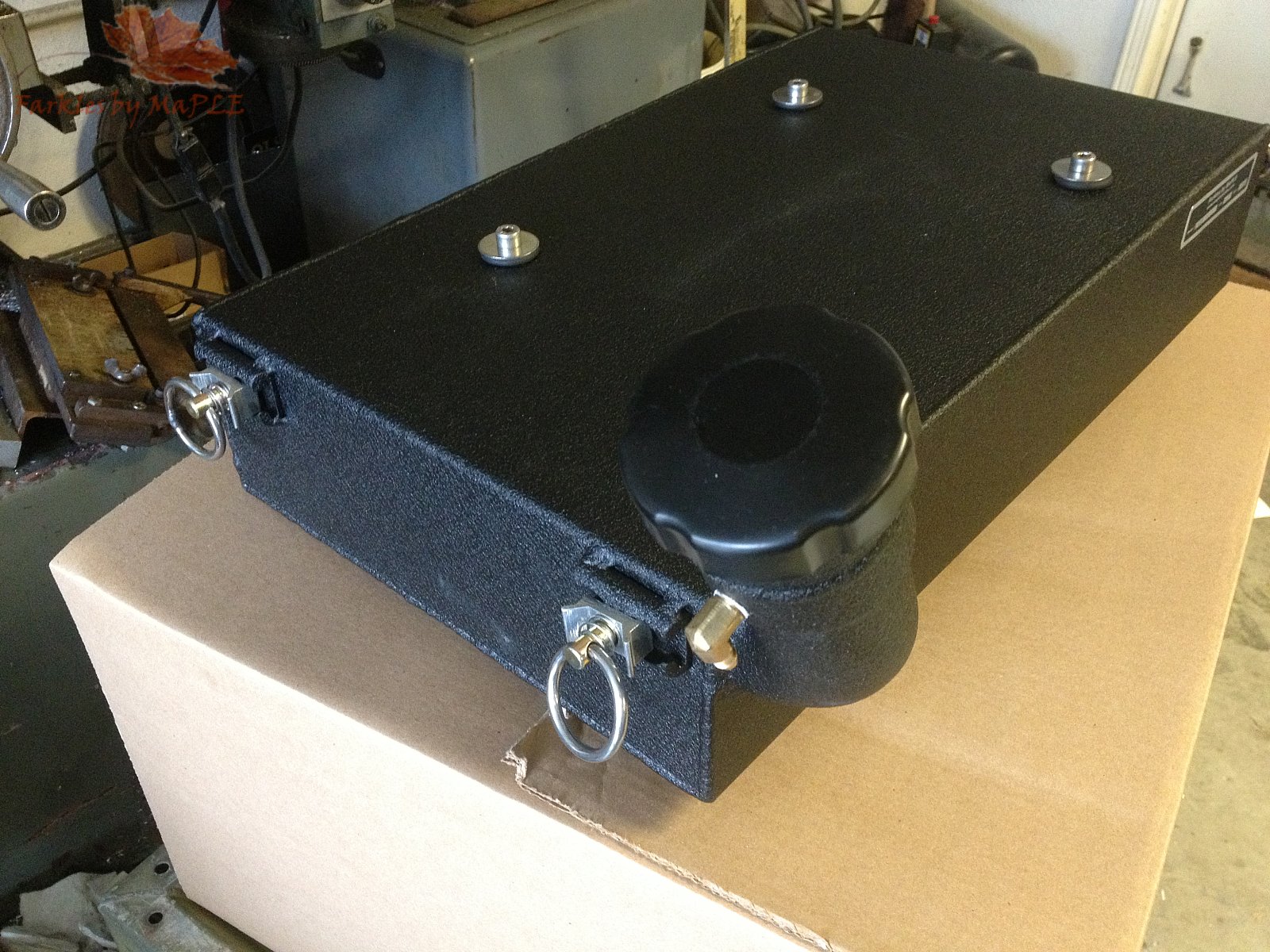

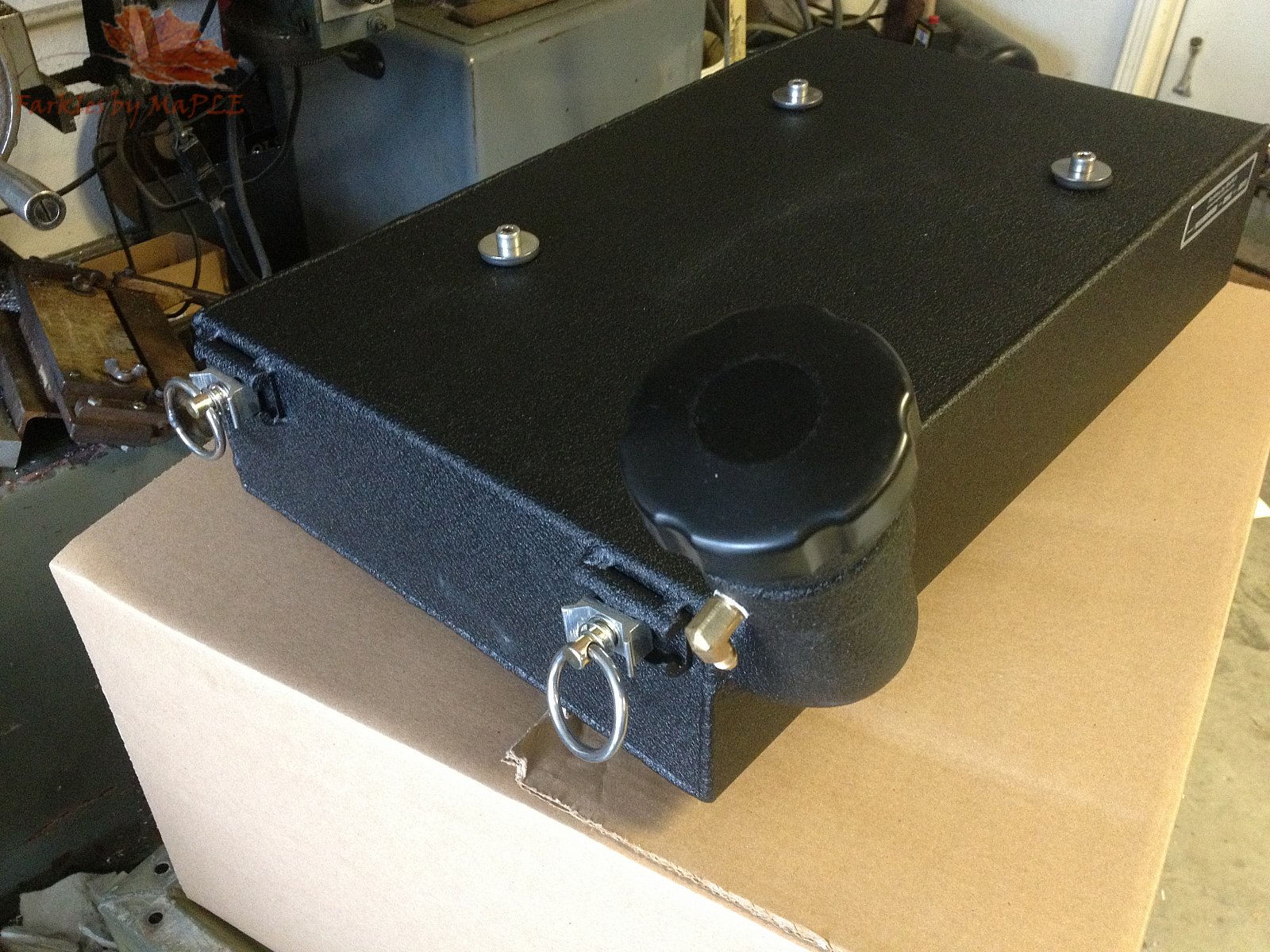

Four mount points were welded in place, one at each outside corner.
Optional L-Track Tie Down Points - LRM L-Track Option

LRM L-Track Option

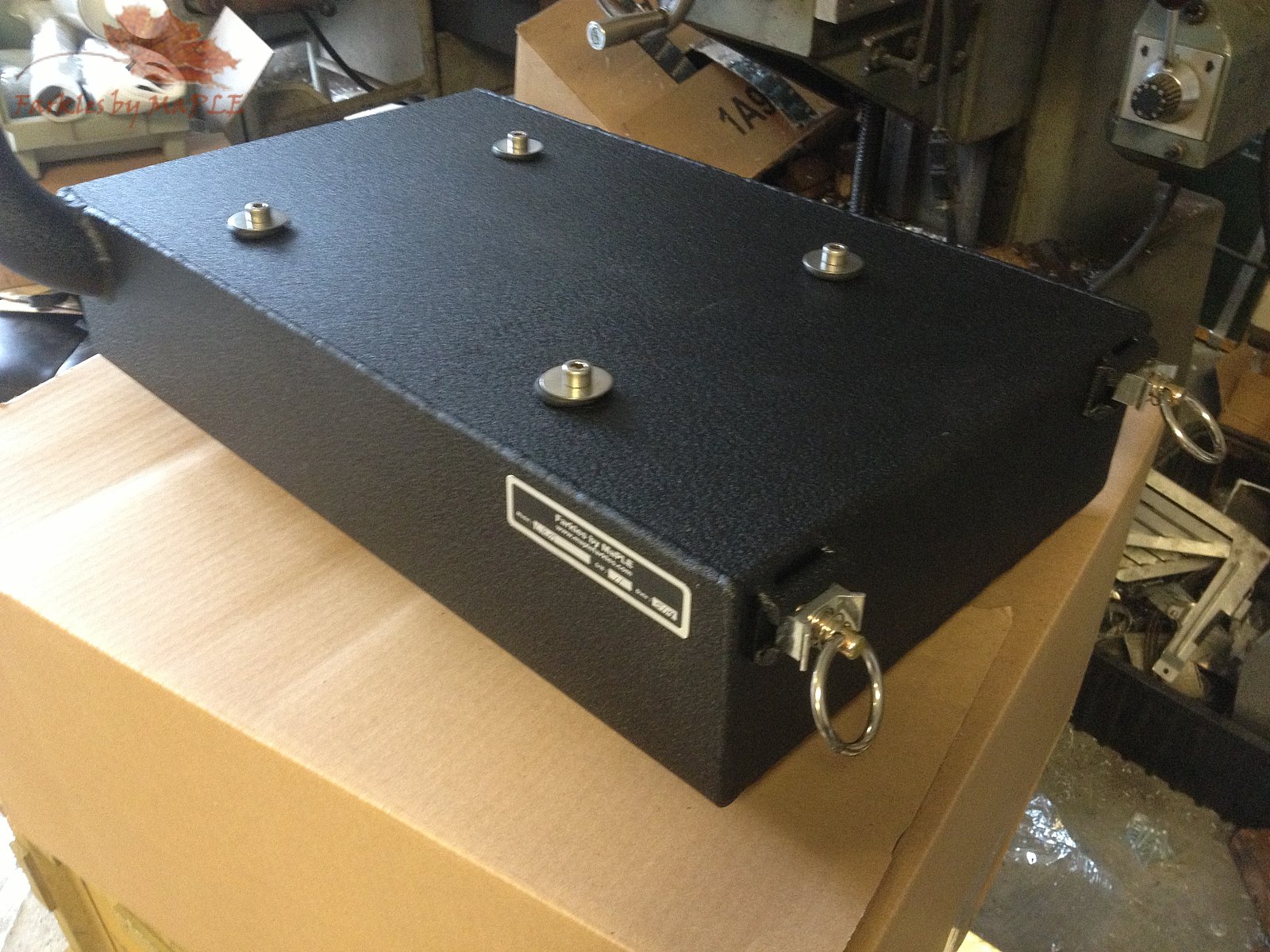

A client opted to have the L-Track tie downs in lieu of a luggage deck.
Optional L-Track Tie Down Points - 2" L-Track

2" L-Track

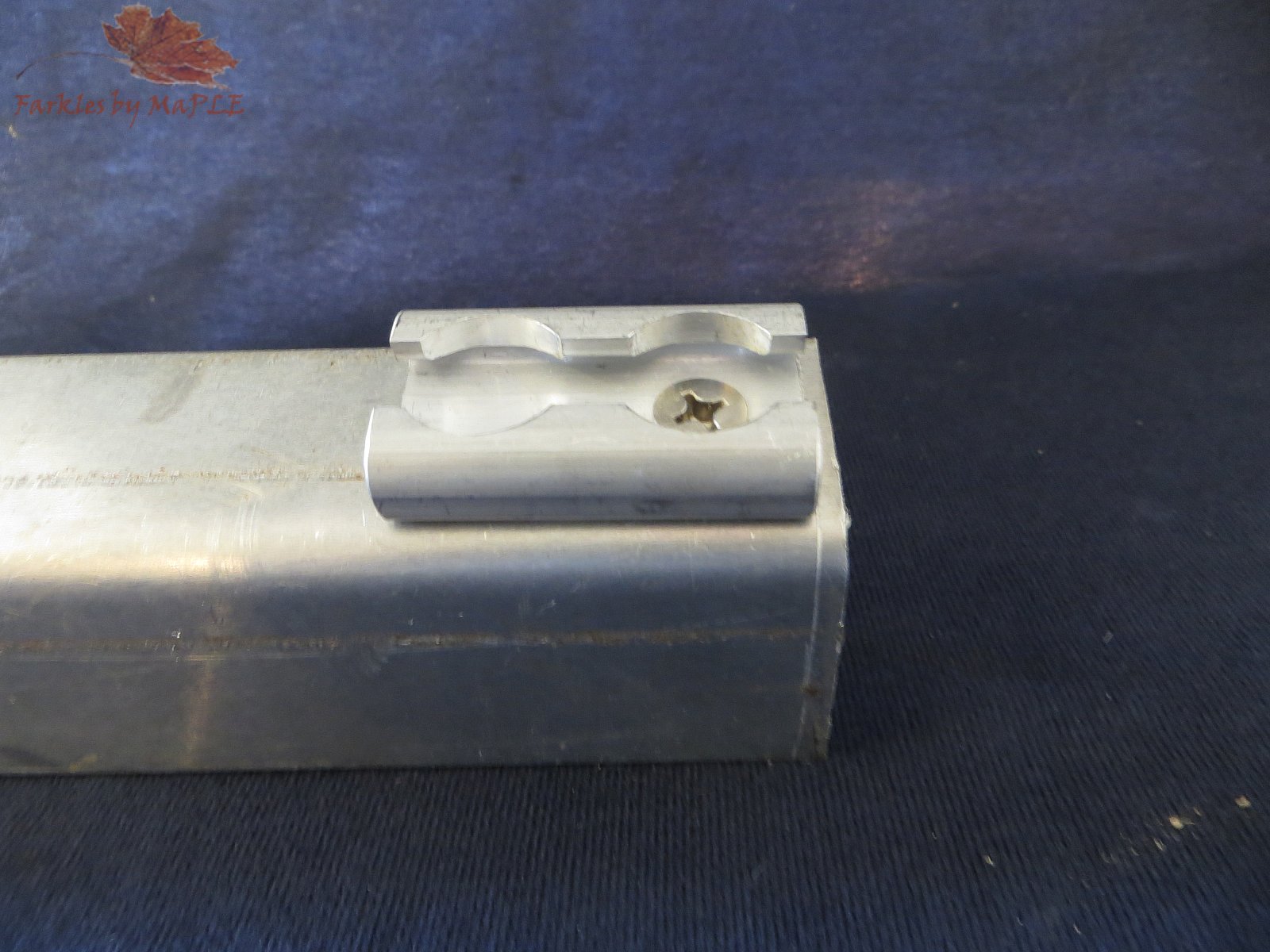

This is the L-Track. It accommodates a variety of tie downs that snap in place. Shown is a 2" long L-Track segment. This is the recommended length since it will accommodate both single and double tie downs. Any length is available if you want to extend your tie down options. This sample is bolted in place for demo purposes. We would weld these to the tank at specified locations.
